BEVA Chainlink®
Premium Chainlink Fence with Superior Elasticity
SNI 07-6503-2001
BEVA Chainlink®
Premium Chainlink Fence with Superior Elasticity
BEVA Chainlink® is a concertina fence made from galvanized steel mesh with many diamond shaped holes. It is produced on international standard automatic machines and is available in 3 twist options: Knuckled-twisted, Twisted- twisted and Knuckled-twisted.
BEVA Chainlink® retains its shape and elasticity, making it easier to splice and quick and easy to install. Supplied with a woven wire pattern in coil form.
The first SNI-certified harmonica wire pioneer in Indonesia, comes with a complete fencing system package (posts & accessories). Available in a wide selection of rust-resistant materials and twisted & knuckled end options to suit your preference.
Material
Made from high-quality, rust-resistant materials, following SNI 07-6503-2001, BS 4102 and JIS 3352 standards. BEVA Chainlink® is stronger and more durable for your various construction needs.
Main raw materials :
- Galvanized Standard: 40 - 70 gr/m² equivalent to SNI Class 2
- Thick Galvanized: 260 gr/m² equivalent to SNI Class 4
Diameter
BEVA Chainlink® is available in the most comprehensive range of wire diameter options, all in accordance with SNI 07-6503-2001 standard on Harmonica Wire Mesh with ±3% tolerance.
Available in diameter :
- 1.6 mm
- 2.0 mm
- 2.7 mm
- 3.0 mm
- 4.0 mm
- 5.0 mm

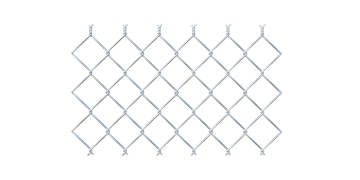

Mesh Size
BEVA Chainlink® woven hole sizes are made based on SNI 07-6503-2001 standard on Harmonic Wire Mesh with ±3% tolerance.
Available sizes length x width :
- 25 mm x 25 mm
- 30 mm x 30 mm
- 40 mm x 40 mm
- 50 mm x 50 mm
- 55 mm x 55 mm
- 60 mm x 60 mm
- 75 mm x 75 mm
- 100 mm x 100 mm
MESH VARIANT
BEVA Chainlink® is available in twist options:
Available variant :
- Knuckled
- Twisted
- Knuckled-Twisted
Roll Size
BEVA Chainlink® is open to customisation requests according to your needs with a minimum purchase requirement.
Available in sizes :
- Max. Height 4m x Length 25m/Roll
Material
Made from high-quality, rust-resistant materials, following SNI 07-6503-2001, BS 4102 and JIS 3352 standards. BEVA Chainlink® is stronger and more durable for your various construction needs.
Main raw materials :
- PVC Coated
Diameter
BEVA Chainlink® is available in the most comprehensive range of wire diameter options, all in accordance with SNI 07-6503-2001 standard on Harmonica Wire Mesh with ±3% tolerance.
Available in diameter :
- 1.6 -> 2.6 mm
- 2.0 -> 3.0 mm
- 2.7 -> 3.8 mm
- 3.0 -> 4.0 mm
Mesh Size
BEVA Chainlink® woven hole sizes are made based on SNI 07-6503-2001 standard on Harmonic Wire Mesh with ±3% tolerance.
Available sizes length x width :
- 25 mm x 25 mm
- 30 mm x 30 mm
- 40 mm x 40 mm
- 50 mm x 50 mm
- 55 mm x 55 mm
- 60 mm x 60 mm
- 75 mm x 75 mm
- 100 mm x 100 mm
MESH VARIANT
BEVA Chainlink® is available in twist options:
Available variant :
- Knuckled
- Twisted
- Knuckled-Twisted

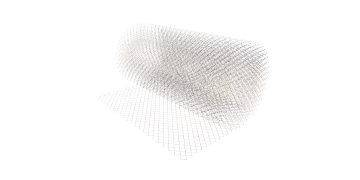

Panel Size
BEVA Chainlink® is open to customisation requests according to your needs with a minimum purchase requirement.
Available in sizes :
- Custom (Max 4 x 25 meter / roll)
Material
Made from high-quality, rust-resistant materials, following SNI 07-6503-2001, BS 4102 and JIS 3352 standards. BEVA Chainlink® is stronger and more durable for your various construction needs.
Main raw materials :
- Zinc + Aluminium 10%
Diameter
BEVA Chainlink® is available in the most comprehensive range of wire diameter options, all in accordance with SNI 07-6503-2001 standard on Harmonica Wire Mesh with ±3% tolerance.
Available in diameter :
- 3.0 mm
- 4.0 mm
- 5.0 mm
Mesh Size
BEVA Chainlink® woven hole sizes are made based on SNI 07-6503-2001 standard on Harmonic Wire Mesh with ±3% tolerance.
Available sizes length x width :
- 25 mm x 25 mm
- 30 mm x 30 mm
- 40 mm x 40 mm
- 50 mm x 50 mm
- 55 mm x 55 mm
- 60 mm x 60 mm
- 75 mm x 75 mm
- 100 mm x 100 mm
MESH VARIANT
BEVA Chainlink® is available in twist options:
Available variant :
- Knuckled
- Twisted
- Knuckled-Twisted
Mesh Size
BEVA Chainlink® woven hole sizes are made based on SNI 07-6503-2001 standard on Harmonic Wire Mesh with ±3% tolerance.
Available sizes length x width :
- 25 mm x 25 mm
- 30 mm x 30 mm
- 40 mm x 40 mm
- 50 mm x 50 mm
- 55 mm x 55 mm
- 60 mm x 60 mm
- 75 mm x 75 mm
- 100 mm x 100 mm
Panel Size
BEVA Chainlink® is open to customisation requests according to your needs with a minimum purchase requirement.
Available in sizes :
- Custom (Max 4 x 25 meter / roll)
The first SNI-certified harmonica wire pioneer in Indonesia, comes with a complete fencing system package (posts & accessories). Available in a wide selection of rust-resistant materials and twisted & knuckled end options to suit your preference.
For further info, please contact us at :
021 – 641 1624
0811 1995 715
sales@bevananda.comFind a wide selection of similar products that can meet your project needs. Providing innovative solutions of the highest quality to ensure the success of every civil engineering and landscape decoration application.
View project detail
Posted on : 18/01/2024
GEOSYNTHETIC PENAHAN LONGSOR SERTA PENCEGAH EROSI
GEOSYNTHETIC PENAHAN LONGSOR SERTA PENCEGAH EROSI
Read More

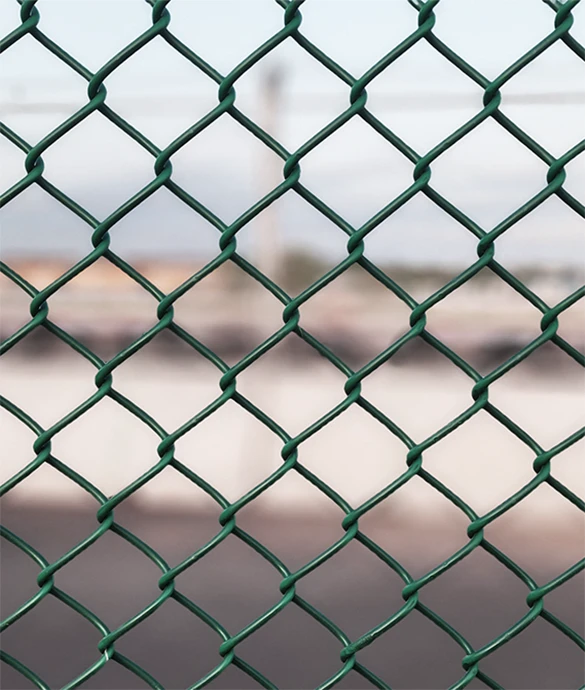

Premium Quality Chainlink wire netting that has a thick well-adhered zinc coating to provide good corrosion resistance and UV Stabilized PVC Coating.
Quality Assurance SNI 07-6503-2001
The first SNI Harmonica Wire in Indonesia
Choice of Net End System
Closed type (knuckled) or twisted type for added protection
Knock Down System
Installation system with nuts & bolts, no welding does not damage the galvanised layer
Low Cost
Economical, multifunctional fencing solution with minimal maintenance costs
Transparent
Suitable for areas that require surveillance
Wide Selection of Rust Resistant Materials
Standard Galvanized / Thick Galvanized, PVC coated, Zinc + 10% Aluminium
Complete Fence System
Comprehensive solution for fencing needs, complete with posts & accessories
Easy Installation
Unfold BEVA Chainlink® trusses & simply connect with line wire
Strong & Durable
Premium materials for long-term durability
High Durability, Minimal Maintenance
Extreme weather resistance, minimal maintenance & longer service life

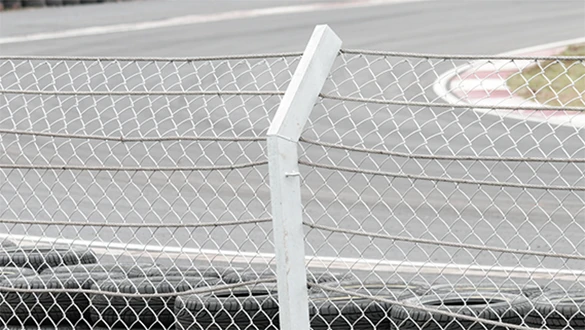

BEVA Chainlink® multifunction chainlink fence for wide range of perimeter, such as residential, sports field, livestock and industrial fencing applications.
SPORTS FIELD
BEVA Chainlink® is an optimal solution for fencing sports fields, including futsal, tennis and basketball courts. Engineered with robust durability and flexible installation, BEVA Chainlink® can effectively withstand the impact of the ball, the movement of players and the high level of activity around it.
GARDEN FENCE
BEVA Chainlink® provides a functional and aesthetically pleasing fencing solution for gardens. Its transparent design allows unobstructed views of the garden area while maintaining a strong perimeter fence.
INDUSTRIAL FENCE
BEVA Chainlink® is also an ideal solution for office fencing requirements. This fence offers optimal security and a modern minimalist look, making it suitable for protecting parking areas, warehouses, or other open areas of the office. It is available in a variety of sizes, allowing for customisation to suit the specific needs of an efficient and functional area.
ANIMAL FENCE
BEVA Chainlink® is an ideal solution for animal fencing. BEVA Chainlink® fences are robust enough to contain animals within the designated area, while ensuring their safety from potential injury. The height and thickness of the wire can be tailored to suit the specific needs of different types of livestock and pets.
