BEVA Gabion® Mattress
Thick Coated Galvanized Gabion
SNI 03-0090-1999
BEVA Gabion® Mattress
Flexible & Effective Soil Reinforcement Solution
BEVA Gabion® Mattress is a revolutionary innovation in the field of erosion control and soil stabilisation. This product is specifically designed as a robust solution to erosion problems in coastal, riverbank and landslide-prone slope environments.
BEVA Gabion® Mattress is shaped like a mattress or mat consisting of high quality galvanized steel wire mesh with double twisted technology. Coated with a selection of thick galvanized and PVC coatings providing better rust resistant protection, longer service life even in humid and corrosive environments.
BEVA Gabion® Mattress is widely used for various applications of slope & road reinforcement, river erosion control, embankment and shoreline protection, channel and ditch bottom reinforcement, to base foundation reinforcement for soft soil structures.
BEVA Gabion® Mattress are made from quality steel wire produced with high-tech machines and already have SNI Certification & high Domestic Component Level (TKDN).
BEVA Gabion® offers precision, robust and long-lasting solutions for a wide range of applications in the construction industry. With a combination of advanced technology, high quality materials and SNI certification, BEVA GABION® offers peace of mind and a guarantee of reliability for your projects.
MATERIAL
BEVA Gabion® Mattress is available in thick-coated galvanized wire and PVC-coated galvanized wire. Produced with advanced machinery, certified by SNI, high TKDN value and available on LKPP E-Catalog.
Main raw materials :
- Heavy Galvanized
DIAMETER
BEVA Gabion® diameter refers to the size of the wire thickness according to SNI standards for gabion structures. The larger the wire diameter, the stronger and durable the gabion is. Making it more effective in withstanding loads and pressure.
Available in diameter :
- 2.7 mm
- 3.0 mm
BOX SIZE
Each BEVA Gabion® unit is produced with a size tolerance of 5%. You can choose from available standard sizes or customize specific sizes according to your needs, with a minimum purchase requirement.
Available sizes length x width x height :
- 4.0 mm X 2.0 mm X 0.23 mm
- 5.0 mm X 2.0 mm X 0.23 mm
- 5.0 mm X 2.0 mm X 0.30 mm
- 6.0 mm X 1.0 mm X 0.30 mm
- 6.0 mm X 2.0 mm X 0.23 mm
- 6.0 mm X 2.0 mm X 0.30 mm
MESH SIZE
Each BEVA Gabion® mesh is precisely made to form perfect hexagonal shape. With high-tech machinery, BEVA Gabion® ensures consistency of both shape and size for a stronger gabion structure.
Available sizes width x height :
- 80 mm X 100 mm
- 100 mm X 120 mm
MATERIAL
BEVA Gabion® Mattress is available in thick-coated galvanized wire and PVC-coated galvanized wire. Produced with advanced machinery, certified by SNI, high TKDN value and available on LKPP E-Catalog.
Main raw materials :
- PVC Coated
DIAMETER
BEVA Gabion® diameter refers to the size of the wire thickness according to SNI standards for gabion structures. The larger the wire diameter, the stronger and durable the gabion is. Making it more effective in withstanding loads and pressure.
Available in diameter :
- 2.7 mm >> 3.8 mm (after coating)
BOX SIZE
Each BEVA Gabion® unit is produced with a size tolerance of 5%. You can choose from available standard sizes or customize specific sizes according to your needs, with a minimum purchase requirement.
Available sizes length x width x height :
- 4.0 mm X 2.0 mm X 0.23 mm
- 5.0 mm X 2.0 mm X 0.23 mm
- 5.0 mm X 2.0 mm X 0.30 mm
- 6.0 mm X 1.0 mm X 0.30 mm
- 6.0 mm X 2.0 mm X 0.23 mm
- 6.0 mm X 2.0 mm X 0.30 mm
MESH SIZE
Each BEVA Gabion® mesh is precisely made to form perfect hexagonal shape. With high-tech machinery, BEVA Gabion® ensures consistency of both shape and size for a stronger gabion structure.
Available sizes width x height :
- 80 mm X 100 mm
- 100 mm X 120 mm
MATERIAL
BEVA Gabion® Mattress is available in thick-coated galvanized wire and PVC-coated galvanized wire. Produced with advanced machinery, certified by SNI, high TKDN value and available on LKPP E-Catalog.
Main raw materials :
- Zinc + Aluminium 10%
DIAMETER
BEVA Gabion® diameter refers to the size of the wire thickness according to SNI standards for gabion structures. The larger the wire diameter, the stronger and durable the gabion is. Making it more effective in withstanding loads and pressure.
Available in diameter :
- 2.7 mm
- 3.0 mm
BOX SIZE
Each BEVA Gabion® unit is produced with a size tolerance of 5%. You can choose from available standard sizes or customize specific sizes according to your needs, with a minimum purchase requirement.
Available sizes length x width x height :
- 4.0 mm X 2.0 mm X 0.23 mm
- 5.0 mm X 2.0 mm X 0.23 mm
- 5.0 mm X 2.0 mm X 0.30 mm
- 6.0 mm X 1.0 mm X 0.30 mm
- 6.0 mm X 2.0 mm X 0.23 mm
- 6.0 mm X 2.0 mm X 0.30 mm
MESH SIZE
Each BEVA Gabion® mesh is precisely made to form perfect hexagonal shape. With high-tech machinery, BEVA Gabion® ensures consistency of both shape and size for a stronger gabion structure.
Available sizes width x height :
- 80 mm X 100 mm
- 100 mm X 120 mm
Easy to install, effective in erosion control and environmentally friendly, the BEVA Gabion Mattress is an innovative and cost effective solution for soil reinforcement
Available in marketplaces throughout Indonesia
For further info, please contact us at :
021 – 641 1624
0811 1995 715
sales@bevananda.comFind a wide selection of similar products that can meet your project needs. Providing innovative solutions of the highest quality to ensure the success of every civil engineering and landscape decoration application.
View project detail
Posted on : 08/01/2024
MEMBANGUN SISTEM GERBANG PAGAR OTOMATIS UNTUK EFISIENSI WAKTU & TENAGA
Sistem gerbang pagar otomatis muncul karena adanya kebutuhan dari masyarakat urban dengan karakter memiliki jadwal kegiatan yang padat dan menuntut segala sesuatunya serba cepat. Karena pola hidup yang serba cepat maka peralatan-peralatan yang mereka gunakan untuk kegiatan sehari-hari harus bisa memudahkan pekerjaan mereka, efisiensi tenaga dan dapat mempersingkat waktu. Seperti halnya dengan aktivitas membuka pagar yang harus bisa dilakukan secara otomatis.
Read MoreBEVA Gabion® galvanized woven gabion reliable, economical and eco-friendly, ideal for many engineering and construction applications.
Easy Installation
Practical and quick installation requires only a pair of pliers.
Strong & Stable
With higher tensile strength, it is able to form a gravity wall that is still, sturdy and ideal for steep slope stability.
Durable
Steel wire with a choice of premium quality Galvanised/Zinc-Aluminium/PVC coating provides rust resistance, longer service life.
Environmentally Friendly
Supports natural vegetation growth, can be filled with surrounding rock material thus reducing carbon emissions compared to concretisation.
Economical
A low cost alternative to concreting.
More Precision Mesh
Manufactured with state-of-the-art machinery, the woven wire mesh is more precise and consistent than home industry products.
Flexible & Adaptive
Can minimize the potential for horizontal deformation and ground settlement in extreme areas.
SLOPE STABILITY
BEVA Gabion® is an effective solution for maintaining slope stability, providing maximum protection against erosion and landslides. Specially designed to resist soil movement, BEVA Gabion® is able to distribute pressure and load evenly across the slope surface. With a strong and corrosion resistant woven steel structure, BEVA Gabion® is able to withstand both material loads and water flow, maintaining slope stability and minimising the risk of environmental damage.

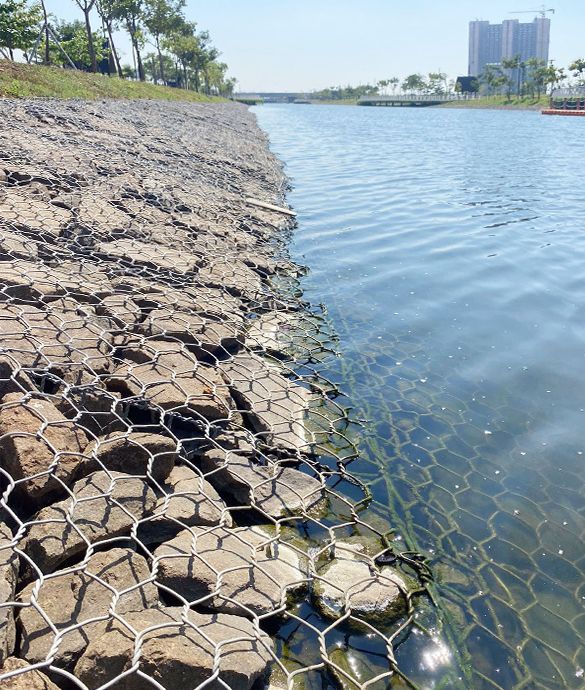

RIVER EROSION CONTROL
BEVA Gabion® can also be used as a river erosion control material to protect river banks and beds from damage caused by strong currents. Manufactured from high quality woven steel wire with a galvanised coating, BEVA Gabion® offers strength and rust resistance, making it an excellent choice for long term applications.

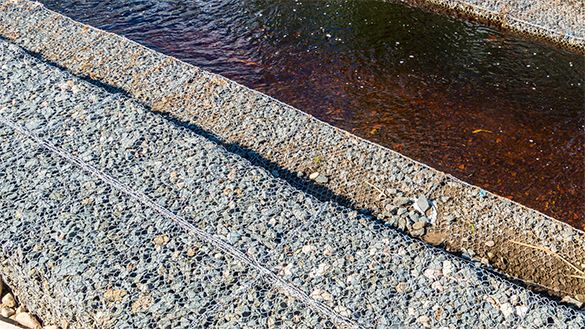

CHANNEL REINFORCEMENT
BEVA Gabion® bekerja sebagai perkuatan dasar saluran dengan cara menstabilkan dan memperkuat struktur dasar melalui material bebatuan didalamnya. Struktur ini membantu mencegah erosi dan pergerakan tanah yang disebabkan oleh aliran air, menjaga kestabilan dan kekuatan dasar saluran.
PROTECTION OF UNDERGROUND STRUCTURES
BEVA Gabion® provides reliable protection for underground structures by retaining and providing stability to the soil and surrounding materials. Woven with high quality steel wire, BEVA Gabion® forms a strong framework that plays an important role in preventing erosion and soil movement, thus maintaining the stability of the structure.
